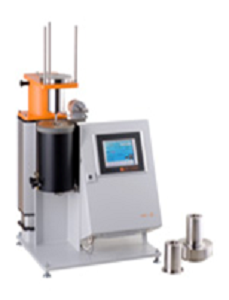

Melt Indexer MI-2

The Melt Indexer MI-2. This unique melt indexer can carry out a single weight test according to ISO 1133 and ASTM D1238, procedures B, as well as ISO 1133 and ASTM D1238 Procedure C for the "Half Height / Half Diameter" standard.
Key Features:

• Brilliant 5.7" Color-QVGA Touch screen display for the operation, program control and display of the measurement results.
• Two heater elements / zones, resolution 0.01°C

• 5 Calibration settings for set temperatures with dedicated parameter files
• High-resolution position transducer to measure volume output
• High-precision timer with a resolution better than 0.001 s
• Built-in USB-connection (Data Stick) for data back-up
• USB printer port
• Serial connection to communicate with the MFRHost software or the optional scale
• Ethernet-connection (LAN, WEB-Server)
• Integrated Web-Server
• Electrically heated test chamber with easily exchangeable test channel and die quick closure
• Capillary/die quick-release and locking mechanism
• Base weight 0.325 kg, Test weights from 1.000 kg and 21.600 kg (option)




Further optional features:

• Electric weight handling system
• Manual or automated melt cutting unit
• Die plug
• Nitrogen purge
• Compress function



Melt Indexer MI-4

The Melt Indexer Model MI-4. This unique melt indexer with automatic weight selection can carry out a single weight test according to ISO 1133 and ASTM D1238, procedures B, as well as ISO 1133 and ASTM D1238 Procedure C for the "Half Height / Half Diameter" standard. Tests can be made either with one test load (single load mode) or with several test loads per barrel filling (multiple test load mode).

Key Features:

• Brilliant 5.7" Color-QVGA Touch screen display for the operation, program control and display of the measurement results
• Single load mode for tests with one load
• Multiple test load mode for test with several different loads per barrel filling
• Two heater elements / zones, resolution 0.01°C
• 5 Calibration settings for set temperatures with dedicated parameter files
• High-resolution position transducer to measure volume output
• High-precision timer with a resolution better than 0.001 s
• Built-in USB-connection (Data Stick) for data back-up
• USB printer port
• Serial connection to communicate with the MFRHost software or the optional scale
• Ethernet-connection (LAN, WEB-Server)
• Integrated Web-Server
• Electrically heated test chamber with easily exchangeable test channel and die quick closure
• Capillary/die quick-release and locking mechanism
• Base weight 1.200 kg, (1.000 kg and 1.050 kg option)
• Test weights from 2.160 kg to 21.600 kg integrated into the machine and user selectable
• Electric weight handling system
• Automatic material compression by means of an installed weight

• Easy feeding and cleaning of the test barrel by swivelable design.



Further optional features:

• Manual or automated melt cutting unit
• Die plug
• Extrudate swell measurement

Nitrogen purge



RHEOGRAPH 20

The new base scaled model, extendable by approved options
The smallest one from the RHEOGRAPH family, our RHEOGRAPH 20, controlled with CANBus technology, was not only developed on modern 3D-construction workstations but of course also with the experience and potential from more than 30 years of the numerous generations before. A high rate of automation and user friendliness, a wide shear rate range as well as a test force, which might be sufficient for many applications come as a standard. Many useful options and nonstandard features can be realized.

Key Features:

• Single barrel system in 9.55, 12, 15 or 20 mm design, 20 kN test force and a dynamic speed range from 0.0001 mm/s (0.006 mm/min) – 40 mm/s (2400mm/min)
• Temperature control range up to 400°C (500°C optional), display resolution 0.01°C
• High temperature stability and extremely low deviation over the whole test barrel length as well as in the die area (norm and standard overmatching)
• Automatic pressure transducer detection and identifying („Plug / Test“)
• Adaptive signal resolution of only 0.005 % from the pressure transducer range




Further optional features:

• Test barrel and test piston in corrosionand wear resistant design

Wide portfolio of options, like Die Swell Measurement, Force Transducer, pVT, Shark-Skin, Thermal Conductivity or Counter Pressure Chamber



MOONEY-VISKOSIMETER 91.11

A shearing disk viskosimeter with a closed chamber and rotor.
The new developed device is used to determine the Mooney Viscosity and the scorch characteristics recorded over time. Typical test materials are unvulcanised rubber compounds and samples of pure natural or synthetic rubber. The functionality is especially simplified due to the new design.
The sample (consisting of two round blanks) is being sheared in the closed chamber by a constant turning rotor. During this procedure the resulting torque is recorded while pressure, temperature and speed are constant.

Key Features:

• Table top instrument with latest control electronic for raw value recording and test data processing
• High sensible and precise torque transducer up to 200 ME
• According to ISO 289 1-4, DIN 53523 1-4 and ASTM D1646
• Measure procedures:
• Mooney Viscosity
• Mooney Scorch
• Mooney Relaxation
• Delta Mooney
• Temperature range up to 200°C
• Rotor drive with precise stepper motor and standard speed of 2 rpm
• Database Software „RubberView“ for parameter settings and measure procedure as well as free definable evaluation
• Universal handling with one multi function button, operating status is indicated by color of the button
• Compact, service friendly design with easily accessible components ready for remote maintenance
• Pneumatic rotor ejection



Further optional features:

• Rotor detection
• Air-/ Fluid tempering

Free definable constant speed from 0.1 to 5 rpm

.



RHEOTENS ONLINE

The RHEOTENS ONLINE is a fully automatic and continuously operating on-line tensile tester developed on the basis of the lab system RHEOTENS. RHEOTENS ONLINE, in conjunction with the on-line capillary rheometer MBR, is the first on-line testing system providing both shear and elongational information. The system offers most possible safety in operation.

Key Features:

• Full control of the complete system via ROSWin PC
• Fully automated or manual measurements
• Automated zero-point calibration
• Automated max. force calibration
• Automated zero-force calibration before test start

Measurement and rest cycles freely programmable





Melt Tension Measurement, Haul-Off

The Haul-Off system measures the extensional properties of polymer melts by drawing a vertical melt strand at a constant pull-off speed or with a linear or exponentially accelerating velocity. The Haul-Off system measures the force needed to elongate the strand, and calculates elongation stress, draw ratio and apparent elongation rate and viscosity.
 The instrument is best used in combination with a suitable high pressure capillary rheometer (e.g. Rheograph 25, 75 or 120) where the device can be located close to the exit of the capillary. It may also be used with an Extrusiometer using a 90° deflection head (or exit) die.

Key Features:

• Freely selectable speed up to 8000 mm/sec, in the design „High Speed" up to 33333 mm/sec
• Freely selectable acceleration, either in linear or in exponential mode
• Anti-adhesion surface coated pull-off wheels
• Measuring range up to 2 N, resolution 0,001 N

Software for setup, control, measurement and evaluation





Blown Film Unit 300 / 550

The Blown Film Unit is a compact unit for blowing, cooling, take off and wind up of extruded hoses. It is suitable for production of small films used by the food industry and in the packaging field where the application of big production machines is often not profitable.

Key Features:

• Roll width 320 / 570 mm
• Flattening width 300 / 550 mm
• Die dimension 30 / 50 / 60 mm
• Take-off speed 0.1 - 50 m/min
• Decoupling unit
• Electronic presetting of the maximum traction force of 50 N
• Controlled film take-off

• Winding diameter 600 mm

• Central lifting unit for easy height adjustment




Further optional features:

• Dual-lip cooling ring
• Air cushion with central adjustment
• Film analysis system
• Core-less, force controlled wind-up unit
• Film rip control

Film border cutting



CO-ROTATOR

The co-rotating twin extruder is an intelligent tool for simulation of Industrial processes in labs and pilot plants. Multiple dies and additional tools enables a easy change over to multiple application.

Key Features:

• Outer screw diameter 18mm
• Screw depth 3.2 mm, thereby also well suited for plastic granules as well as for small up to medium sized chips
• Screw Speed up to 1.200 rpm
• Drive capacity 10 kW thanks to MEGAcompounder torque
• High throughput range: 1 - 40 kg/h (dependent of formulation)
• Meaningful results with composites starting of 200 g , good stability of the testing conditions at min. 1 kg
• Easy extrapolation of lab test data to ZSK-MEGAcompounder
• Compact construction on movable base support
• Modular kit selection for screw housings and screw elements
• Constant massive and high-strength screw shafts with involute gearing
• Screw housing with electrical heating and water cooling
• User friendly control (in base support) with touch-screen
• Fast plug / play operation
• Cooling device and vacuum pump integrated in the base support (optional)



Further optional features:

• Easy to connect side feeder with swivel arm

Fast and easy online support via Internet or via integrated modem





Flat Film Unit 300 / 400

The Flat Film Unit is a compact unit combines the take-off, cooling and winding of flat films made of PE, PP and other plastics. It also serves to produce small films with variable thicknesses used in the packaging industry in general, and in the food industry specifically, where large film production units are not efficient.

Application
Production control

• For monitoring the dispersion performance of compounders or extruders used in batch production
• For inspection of incoming goods for gels and color distribution



Development

• For control of the maximum polymer extensibility
• To monitor the suitability of polymers or polymer blends in the laboratory



Production
Serving a wide range of industry branches the compact design of this series offers a good alternative for the food and the packaging industry where large-scale production systems are often not profitable

Key Features:

• Slit die widths 70/120/150/220/320/420 mm
• Film width up to 400mm (more on request)
• Pull off speed 0-50m/min
• Winding roll diameter max. 600mm
• Stepless height adjustment
• Windup unit with split shaft for tubeless winding



Further optional features:

• Flat Film Unit on movable frame
• Air knife to cool the film
• Thermostat for tempering the nip rolls
• Edge remover
• Film inspection (spots and inhomogeneities)
• Film thickness measurement

Haze / Gloss measurement
