GEIGER COUNTING SYSTEM -[ Type:GC 602A ]

Technical Data

• Geiger Counting system type GC602A manufactured by NUCLEONIX is an Advanced Technology based versatile integral counting system designed around eight bit microcontroller chip. This system is highly recommended for research work, apart from, its usefulness in the academic fields for teaching. This system along with wide end window G.M. Tube Type GM125 and Lead Castle will serve as an excellent Beta Counting System useful for swipe sample counting by Health Physics Labs. This counting system can be useful for carryingout a number of Nuclear Physics experiments such as Characteristics curve of a G.M. Detector, to verify the inverse square law for Gamma Radiation, determination of Beta Absorption correlation factor, efficiency of G.M.Counter for Beta Radiation, determination of the back scattering factor of a material for beta rays etc,. if it is used in a teaching lab.

Features

• Ideal choice for teaching labs in physics stream/Beta sample counting in health physics and research, applications.
• 16 x 2 LCD dotmatrix display for counts, elapsed time and EHT
• Counts capacity 999999, preset time 9999 sec
• Variable EHT (0-1500V), 1mA
• Store and Recall facility for data counts
• Built-in parallel port for direct data printing
• Built-in RS 232C serial port for data transfer to PC
• Programmability for lable assignment for a sample



Specifications

G.M. Input (From G.M.Counter)	(a) Polarity : Negative (b) Amplitude : 250 mV (min)
Resolving Time	6 micro sec (approx)
EHT Output	Variable EHT using tenturn pot upto a maximum of 1500 volts at 1 mA. Line and load regulation better than 0.05%. Ripple less than 20mV.
Display	20 x 2 LCD dotmatrix display has been provided to indicate data counts, Elapsed Time and EHT.
Modes of operation	Preset count & preset time modes.
Counts Capacity	999999 counts
Preset time	(0-9999) sec.
Data Storage	Upto 1000 readings
Command Buttons	START, STOP, PROG, STORE, INC & DEC command buttons have been provided on the front panel key pad.
Programmability	Includes selection of Preset Time, Storing / Recalling of data, Starting and stopping of acquisition, lable assignment for data counts BG (Background), ST (Standard) & SP (sample) etc,.
Printer Port	Built-in centronics port facilities connection to a printer for direct data printing selectively.
Serial Port	RS 232C facilities data communication to PC under programme control.
Paralysis Time	A choice of three paralysis times 250, 350 and 550 micro sec plus OFF position selected through PROG key.
Ext. Keypad (Optional )	From Rear Panel I/O connector one can have ext. keypad with same command buttons as mentioned above.
G.M. Pulse Output	G.M. Detector pulses can be seen on the oscilloscope.
G.M. Socket	UHF connector for connecting to G.M. Detector.
Power	Unit is powered through a detachable mains cord. It will draw about 250 mA at 230 volts AC at 50 Hz.
Mechanical Dimensions	236mm(W)X133mm(H)X246mm(D)



Recommended Accessories for G.M counter kit : G.M Stand/Sliding Bench, End Window G.M Detector, Radioactive source kit, Aluminium Absorber set, Software Tutor.

Radiation counting system with accssories For Alpha Sample Counting - [ Type : RC 605A ]

Technical Data

Radiation Counting system, type RC605A manufactured by NUCLEONIX is a versatile state of art integral counting system designed around eight bit microcontroller chip for using with a variety of detector probes such as Alpha / Beta / Gamma scintillator detector probe or End window G.M detector probe. The system is suitable for counting Alpha, Beta and Gamma sample counting with appropriate detector probes.With alpha probe AP165 connected to this system it essentially works as an alpha counting system.
Radiation Counting System essentially has a processor card and other electronic circuits to generate continuously variable HV upto 1500V to be applied to scintillation detector Probes (alpha, beta, gamma) or End window G.M.Tube, amplify the detector output and convert them to digital pulses for counting and displaying the recorded counts for a preset time.
Microcontroller design facilitates programmability for background, standard and sample counting. The data can be downloaded into PC or printed directly onto a printer.
System facilitates counting of samples either on planchets or filter paper.
This system will find applications for counting of air activity, wipe, environmental, geological and other samples for both beta , gamma and alpha activity. Activity report is generated for unit volume of sample.



Features

Manufactured confirming to ANSI N 42.17.
• Complies to IS -9000 part III & V, for climatic tests.
• Complies to Interference test as per IEC61000 or equ.
• State of art microcontroller based design.
• 20 x 2 LCD dotmatrix display for counts, elapsed time and HV.
• Counts capacity 999999, preset time 9999 sec.
• Variable HV (0-1500V), 0.5mA
• Built-in parallel port for direct data printing.
• Built-in RS 232C/RS485 serial port for data transfer to PC
• Programmability for lable assignment for a sample
• Facilitates connection to Alpha & Beta probes for sample counting

Specifications

P.M. Input (From alpha, beta, gamma scintillation detector probe) : (a) Polarity : Negative (b) Amplitude : -100 mV (min) G.M. Input (From G.M.Counter) : (a) Polarity : Negative (b) Amplitude : -500 mV (min) (c) Built-in load resistor : 4.7 or 3.3M Ohms HV Output : HV (0-1500V) @1mA continuously variable through front panel keypad in steps of 1 volt, ripple less than 20mV, line & load regulation better than 0.05%. HV indication : On LCD dotmatrix provided. Display : 20 x 2 LCD dotmatrix display has been provided to indicate data counts, Elapsed Time and HV. Counts Capacity : 999999 counts Preset time : 1min to 24 hrs (HH : MM) format Preset cycles / Iterations : 1 to 10 Command Buttons: START, STOP, PROG, STORE, INC & DEC command buttons have been provided on the front panel key pad. Data Communication Software : (Optional at extra cost) Can be provided for serial transfer of data readings into PC. PCB Edge Connector : EURO Type. Inter PCB Connections : Through Mother Board. Power : Unit is powered through a detachable mains cord. It will draw about 250 mA at 230 volts AC at 50 Hz.

Paralysis Time : A choice of three paralysis times 250, 350 and 550 micro sec plus OFF position selected through PROG key. Programmability : Includes selection of Preset Time, Storing / Recalling of data, starting and stopping of acquisition, label assignment for data counts BG (Background), ST (Standard) & SP (sample) etc,. RTC : Built in RTC provides real time clock information which is stamped in the activity report when printed. Built in Real time clock facillitates the user to generate sample analysis reports with RTC stamping. Both date month & time in hrs and minutes are printed. Scintillation detector probe socket : This is a UHF socket for connecting to a, b or g scintillation Probe. G.M. Socket : UHF connector for connecting to G.M. Detector. Printer Port : Built-in centronics port facilitates connection to a printer for direct data printing selectively. Serial Port : Built-in serial port facilitates data down loading into PC through RS232/RS485 port ( MODBUS COMPLIANT) Operating Temperature: 0 to 50oC Relative Humidity : Upto 90% Compliance : Instrument will meet all requirements applicable (a) Manufactured confirming to ANSI N 42.17. (b) Complies to IS -9000 part III & V, for climatic test. (c) Complies to Interference test as per IEC61000 or equ. . Mechanical Dimensions : 250mm(W) X135mm(H)X325mm(D) Approx.



TYPICAL ALPHA SAMPLE COUNTING REPORT

BGD CPM : 0000 CPM OF STD : 00092 DPM OF STD : 00265 EFF. OF STD : 034.7 *FLOW RATE : 01.00

PTIME (BG) : 0300 PTIME (ST) : 0300 PTIME (SP) : 0300

SL.NO

LABEL

RTC

COUNTS

P.TIME

VOL( )

Bq/VOL

iter

0001

BG

11:43 06-09

0000CPM

000180

---

---

---

0002

STD

11:52 06/09

000160CPM

000060

0010dps

26.56% Eff

0003

SP1

11:47 06/09

000196

000060

0000 ml--

0000.00Bq/ml--

01

0004

SP2

11:48 06/09

000180

000060

0001ml--

0009.03Bq/ml--

01

0005

SP3

11:50 06-09

000187

000060

0001ml--

0000.93Bq/ml--

01



Applications:

This system can be used for counting a, b or g samples on a 25mm dia planchet or 47/50mm dia filter paper obtained from air samplers, or continuous air monitors in a Nuclear facility. System can also used for wipe sample counting in nuclear counting lab of a Nuclear power plant or similar facility. Also this system can be used in a University for teaching lab experiments in a physics department.



Radiation counting system with BETA Counting - [ Type : RC 605A ]

Technical Data

Radiation Counting system, type RC605A manufactured by NUCLEONIX is a versatile state of art integral counting system designed around eight bit microcontroller chip for using with a variety of detector probes such as Alpha / Beta / Gamma scintillator detector probe or End window G.M detector probe. The system is suitable for counting Alpha, Beta and Gamma sample counting with appropriate detector probes. This system essentially works as a Beta sample counting system with any one of the probes GM125/SBP-2 connected to it.
Radiation Counting System essentially has a processor card and other electronic circuits to generate continuously variable HV upto 1500V to be applied to scintillation detector Probes (alpha, beta, gamma) or End window G.M.Tube, amplify the detector output and convert them to digital pulses for counting and displaying the recorded counts for a preset time.
Microcontroller design facilitates programmability for background, standard and sample counting. The data can be downloaded into PC or printed directly onto a printer.
System facilitates counting of samples either on planchets or filter paper.
This system will find applications for counting of air activity, wipe, environmental, geological and other samples for both beta , gamma and alpha activity. Activity report is generated for unit volume of sample.

Features

Manufactured confirming to ANSI N 42.17.

• Complies to IS -9000 part III & V, for climatic tests.
• Complies to Interference test as per IEC61000 or equ.
• State of art microcontroller based design.
• 20 x 2 LCD dotmatrix display for counts, elapsed time and HV.
• Counts capacity 999999, preset time 9999 sec.
• Variable HV (0-1500V), 0.5mA
• Built-in parallel port for direct data printing.
• Built-in RS 232C/RS485 serial port for data transfer to PC
• Programmability for lable assignment for a sample
• Facilitates connection to Alpha & Beta and gamma probes for sample counting.



Specifications

P.M. Input (From a, b, g scintillation detector probe) : (a) Polarity : Negative (b) Amplitude : -100 mV (min) G.M. Input (From G.M.Counter) : (a) Polarity : Negative (b) Amplitude : -500 mV (min) (c) Built-in load resistor : 4.7 or 3.3M Ohms HV Output : HV (0-1500V) @1mA continuously variable through front panel keypad in steps of 1 volt, ripple less than 20mV, line & load regulation better than 0.05%. HV indication : On LCD dotmatrix provided. Display : 20 x 2 LCD dotmatrix display has been provided to indicate data counts, Elapsed Time and HV. Counts Capacity : 999999 counts Preset time : 1min to 24 hrs (HH : MM) format Preset cycles / Iterations : 1 to 10 Command Buttons: START, STOP, PROG, STORE, INC & DEC command buttons have been provided on the front panel key pad. Paralysis Time : A choice of three paralysis times 250, 350 and 550 micro sec plus OFF position selected through PROG key. Data Communication Software : (Optional at extra cost) Can be provided for serial transfer of data readings into PC. PCB Edge Connector : EURO Type. Inter PCB Connections : Through Mother Board. Power : Unit is powered through a detachable mains cord. It will draw about 250 mA at 230 volts AC at 50 Hz.

Programmability : Includes selection of Preset Time, Storing / Recalling of data, starting and stopping of acquisition, label assignment for data counts BG (Background), ST (Standard) & SP (sample) etc,. RTC : Built in RTC provides real time clock information which is stamped in the activity report when printed. Built in Real time clock facillitates the user to generate sample analysis reports with RTC stamping. Both date month & time in hrs and minutes are printed. Scintillation detector probe socket : This is a UHF socket for connecting to alpha, beta or gamma scintillation Probe. G.M. Socket : UHF connector for connecting to G.M. Detector. Printer Port : Built-in centronics port facilitates connection to a printer for direct data printing selectively. Serial Port : Built-in serial port facilitates data down loading into PC through RS232/RS485 port (MODBUS COMPLIANT) Operating Temperature: 0 to 50oC Relative Humidity : Upto 90% Instrument will meet all requirements applicable to : (a) Manufactured confirming to ANSI N 42.17. (b)Complies to IS -9000 part III & V, for climatic test. (c) Complies to Interference test as per IEC61000 or equ. Mechanical Dimensions : 250mm(W) X135mm(H)X325mm(D) Approx.



TYPICAL BETA SAMPLE COUNTING REPORT

BGD CPM : 0000 CPM OF STD : 00092 DPM OF STD : 00265 EFF. OF STD : 034.7 *FLOW RATE : 01.00 (lit/min)

PTIME (BG) : 0300 PTIME (ST) : 0300 PTIME (SP) : 0300<

SL.NO

LABEL

RTC

COUNTS

P.TIME

VOL( )

Bq/VOL

iter

0001

BG

11:43 06-09

0000CPM

000180

---

---

---

0002

STD

11:52 06/09

000160CPM

000060

0010dps

26.56% Eff

0003

SP1

11:47 06/09

000196

000060

0000 ml--

0000.00Bq/ml--

01

0004

SP2

11:48 06/09

000180

000060

0001ml--

0009.03Bq/ml--

01

0005

SP3

11:50 06-09

000187

000060

0001ml--

0000.93Bq/ml--

01



Applications

This system can be used for counting alpha, beta or gamma samples on a 25mm dia planchet or 47/50mm dia filter paper obtained from air samplers, or continuous air monitors in a Nuclear facility. System can also used for wipe sample counting in nuclear counting lab of a Nuclear power plant or similar facility. Also this system can be used in a University for teaching lab experiments in a physics department.



Radiation Counting System With Accssories For GAMMA Sample Counting - [Type: RC 605A]

Technical Data

Radiation Counting system, type RC605A manufactured by NUCLEONIX is a versatile state of art integral counting system designed around eight bit microcontroller chip for using with a variety of detector probes such as Alpha / Beta / Gamma scintillator detector probe or End window G.M detector probe. This system is suitable for counting Gamma samples with gamma scintillation appropriate detector probe.
Radiation Counting System essentially has a processor card and other electronic circuits to generate continuously variable HV upto 1500V to be applied to scintillation detector Probes (alpha, beta, gamma) or End window G.M.Tube, amplify the detector output and convert them to digital pulses for counting and displaying the recorded counts for a preset time.
Microcontroller design facilitates programmability for background, standard and sample counting. The data can be downloaded into PC or printed directly onto a printer.
System facilitates counting of samples either on planchets or filter paper.
This system will find applications for counting of air activity, wipe, environmental, geological and other samples for both beta , gamma and alpha activity. Activity report is generated for unit volume of sample.

Features

• Manufactured confirming to ANSI N 42.17.
• Complies to IS -9000 part III & V, for climatic tests.
• Complies to Interference test as per IEC61000 or equ.
• State of art microcontroller based design.
• 20 x 2 LCD dotmatrix display for counts, elapsed time and HV.
• Counts capacity 999999, preset time 9999 sec.
• Variable HV (0-1500V), 0.5mA
• Built-in parallel port for direct data printing.
• Built-in RS 232C/RS485 serial port for data transfer to PC
• Programmability for lable assignment for a sample
• Facilitates connection to Alpha & Beta and gamma probes for sample counting.

Specifications

P.M. Input (From alpha, beta, gamma scintillation detector probe) : (a) Polarity : Negative (b) Amplitude : -100 mV (min) G.M. Input (From G.M.Counter) : (a) Polarity : Negative (b) Amplitude : -500 mV (min) (c) Built-in load resistor : 4.7 or 3.3M Ohms HV Output : HV (0-1500V) @1mA continuously variable through front panel keypad in steps of 1 volt, ripple less than 20mV, line & load regulation better than 0.05%. HV indication : On LCD dotmatrix provided. Display : 20 x 2 LCD dotmatrix display has been provided to indicate data counts, Elapsed Time and HV. Counts Capacity : 999999 counts Preset time : 1min to 24 hrs (HH : MM) format Preset cycles / Iterations : 1 to 10 Command Buttons: START, STOP, PROG, STORE, INC & DEC command buttons have been provided on the front panel key pad. Data Communication Software : (Optional at extra cost) Can be provided for serial transfer of data readings into PC. PCB Edge Connector : EURO Type. Inter PCB Connections : Through Mother Board. Power : Unit is powered through a detachable mains cord. It will draw about 250 mA at 230 volts AC at 50 Hz.

Paralysis Time : A choice of three paralysis times 250, 350 and 550 micro sec plus OFF position selected through PROG key. Programmability : Includes selection of Preset Time, Storing / Recalling of data, starting and stopping of acquisition, label assignment for data counts BG (Background), ST (Standard) & SP (sample) etc,. RTC : Built in RTC provides real time clock information which is stamped in the activity report when printed. Built in Real time clock facillitates the user to generate sample analysis reports with RTC stamping. Both date month & time in hrs and minutes are printed. Scintillation detector probe socket : This is a UHF socket for connecting to alpha, beta or gamma scintillation Probe. G.M. Socket : UHF connector for connecting to G.M. Detector. Printer Port : Built-in centronics port facilitates connection to a printer for direct data printing selectively. Serial Port : Built-in serial port facilitates data down loading into PC through RS232/RS485 port ( MODBUS COMPLIANT)  Operating Temperature: 0 to 50oC Relative Humidity : Upto 90% Instrument will meet all requirements applicable to : (a) Manufactured confirming to ANSI N 42.17. (b) Complies to IS -9000 part III & V, for climatic test. (c) Complies to Interference test as per IEC61000 or equ. Mechanical Dimensions : 250mm(W) X135mm(H)X325mm(D) Approx.



TYPICAL ALPHA / BETA / gamma SAMPLE COUNTING REPORT

BGD CPM : 0000 CPM OF STD : 00092 DPM OF STD : 00265 EFF. OF STD : 034.7 *FLOW RATE : 01.00 (lit/min)				PTIME (BG) : 0300 PTIME (ST) : 0300 PTIME (SP) : 0300<
	SL.NO	LABEL	RTC		COUNTS	P.TIME	VOL( )		Bq/VOL	iter
	0001	BG	11:43 06-09		0000CPM	000180	---		---	---
	0002	STD	11:52 06/09		000160CPM	000060	0010dps		26.56% Eff
	0003	SP1	11:47 06/09		000196	000060	0000 ml--		0000.00Bq/ml--	01
	0004	SP2	11:48 06/09		000180	000060	0001ml--		0009.03Bq/ml--	01
	0005	SP3	11:50 06-09		000187	000060	0001ml--		0000.93Bq/ml--	01



Applications

This system can be used for counting alpha, beta or gamma samples on a 25mm dia planchet or 47/50mm dia filter paper obtained from air samplers, or continuous air monitors in a Nuclear facility. System can also used for wipe sample counting in nuclear counting lab of a Nuclear power plant or similar facility. Also this system can be used in a University for teaching lab experiments in a physics department.

GAMMA Scintillation probe With Stand: [Type: GS -1]

This essentially consists of a 2” x 2” NaI Integral detector, with PMT / HV bleeder wired & enclosed in a cylindrical shell with appropriate connector brought out for applying HV bias to PMT & also for taking signal output to the Radiation Counting System. This probe with NaI crystal facing downwards is placed in a sample holder having slotted arrangement for placing sample tray. Samples either filter paper deposited air activity sample or in a SS planchet can be kept for gross gamma activity counting. This Radiation counting system cannot be used for selection of a specific energy band. For applications requiring counting for a specific energy band one has opt for Gamma ray spectrometer.





TLD Reader: PC CONTROLLED Thermoluminescence Reader

[Type : TL 1009I]

Technical Data

Thermoluminescence Reader Type TL1009 designed and offered by NUCLEONIX SYSTEMS is a versatile controller based unit, facilitating the user to subject the TL sample under study to the desired heating profile, to record the digitized TL glow curve. This unit stores both integral value and digitized glow curve into EEPROM memory.
This unit records the data in 200 channels, temp, TL intensity & Run time values.
Entire electronics including PMT, HV bias, Temperature controller circuit, Heater transformer heater strip, sample drawer assembly, data acquisition electronics is all integrated into a single enclosure.
The user interface to the unit is through a powerful software GUI, coded in VB which runs on Windows platform. This system essentially works as a PC controlled TLD reader with command buttons and dropdown menus defined for various functions. Built-in small keypad and visual indication through a 20x4 LCD dotmatrix display provide limited functions to the user which essentially serve the purpose of checking the majority of the unit hardware functionality.

Built-in serial port in the unit facilitates the user to connect it to a PC for GUI and to achieve full functionality.

Features

Micro controller based Integral system and works as a PC controlled TL Reader.

• Built-in serial port facilitates connection to PC
• Heating rates are 10c/sec to 400c/sec
• Max. set temperature 5000c.
• Heating profile : Linear , Linear clamped.
• Software features include glow curve, acquisition, display, filing, printing, processing etc.

Specifications

PMT housing and TL sample heating assembly : This unit has a photomultiplier Tube generally of Hamamatsu / ET make, is used. However , assembly facilitates one to go in for other photomultiplier Tubes also with appropriate modification in the PMT socket wiring. The cylindrical shell containing the Photomultiplier is fitted on to a rectangular base drawer block containing a heater arrangement and thermocouple, heater rods, connected to a power transformer . Heating Arrangement : Resistive heating method. Heating Element : (Heater Strip ) Kanthal strip (72% Fe, 23% Al and 2% Cr or Nichrome) is used as a heating element. Kanthal Strip has a circular depression of 14mm to hold discs and powder samples. Temperature range: From room temperature upto 5000c, in linear, linear clamped mode of heating can be programmed. Heating Rates: Heater strip can be programmed to heat the sample from 10c/sec upto 400c/sec and a max set temperature (allowed) is 5000c. Arrangement for Optical Filters : One Heat absorbing glass / filter (IR cutoff filter) : This is essentially an IR cut-off filter which allows only visible light and cuts- off IR Radiation has been provided just below the PMT window. Additionally filters (Band pass) if required by the user may be positioned above with IR filter.

Heating Process : Programmed heating can be done in two modes: i. "PROG MODE" of Temp. controller through personal computer program. ii. "ISO MODE" (Internal mode) of Temperature Controller , by varying the ten turn dial. Temperature Sensor : Thermocouple Sensor ( Cr-Al spot-welded to heater strip). PMT Cooling : Thermoelectric cooling arrangement for the PMT is provided. High voltage to PMT : A continuously adjustable HV (0 to -1500V) @1mA is generated by HV circuits. User can select desired HV from front panel. There is HV socket (test) for checking HV presence on rear panel. Auto -Ranging : Current output from the photomultiplier is taken to I-F converter, to give frequency output proportional to PMT current. This wide dynamic range is achieved for plotting TL intensity on Y-axis. Nitrogen Flushing Nozzle : Nitrogen gas flushing (sent through a flexible rubber pipe), suppreses spurious luminescence from oxidation effects & combustion phenomena has been provided. Dimensions of Integral unit: 25.5W X 26ht. X 48D



SOFTWARE FEATURES

File handling: The features include file (Glow curve data) saving, Retrieving, printing & overlapping. Graph & Process : Setting of Y-scale factor , 3-point smoothening of glow curve, data multiplication and subtraction functions etc are configured under this menu. Data acquisition: Data acquisition, display, plotting, download, setting sample type etc are featured under this menu.

Configuration: This menu facilitates the user to set comport, perform temperature calibration, set temperature profile. Reports : Reports for fixed geometry samples as well as for powder samples are generated through this menu, to give dose equivalent of the sample under study.

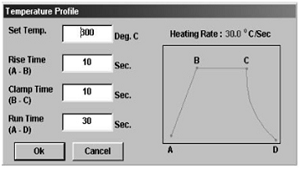

Fig : Temperature Configuration Men

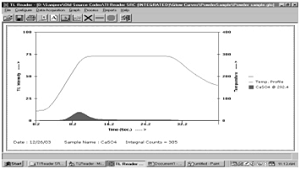

Fig : Typical TL Glow Curve



APPLICATIONS :

TL Phosphor Characterisation, Medical Dosimetry, Personal Monitoring Research, Archeology dating, Environmental Radiation Monitoring, Medicine, Biology, Neutron Dosimetry, Reactor Engineering, High Level Photon Dosimetry with TL materials, standardisation and intercomparison of TL dosimeters used in personnel monitoring etc.

OPTIONAL ACCESSIORIES:
A.TL Materials & Phosphors
(i) TL Phosphor CaSO4: Dy Powder
(ii) TL Discs CaSO4: Dy discs with teflon base 13.5mm dia X 0.8mm thick.
B. Annealing Oven
Internal Diamensions 30cm X 30cm X 20cm
Temp Range : upto 4500c
Temp Indication: Digital



DIGITAL POCKET DOSIMETER - II [ Type : PD 712 ]

Technical Data

Digital Pocket Dosimeter Type PD712 uses a high sensitivity Si- diode as the radiation detector.
This serves as personel radiation monitor with alarm to cater to the needs of radiation workers in Nuclear installations, Reprocessing plants, Radiochemical plants, etc. It also finds use in medical, industrial, other applications where radioactive isotopes are used for a variety of applications.
It measures integrated radiation dose in the range of 1µSv to 99.99mSv and doserate in the range of 0.1mSv/h to 99.9 mSv/h. It is also provided with preset alarm feature for generation of audio alarms in the event of high dose / doserate.
The user interface to the instrument is through the LCD display and a single push button switch. The dosimeter is provided with an optical port for data communication with PC for the purpose of setting preset alarm levels and for calibration of the dosimeter.
Its design is based on nano watt technology resulting in a battery life of better than 500 Hrs of continuous use.
Additional options :
i. Docking station for PD712
ii. Dose records data management software DS713

Features

• Silicon diode is used as the radiation detector.
• Serves as an excellent pocket dosimeter (worn on waist belt)
• Measures cummulative dose in the range of 1 µSv to 999999 mSv and doserate in the range of 100 mSv/h to 99.9 mSv/h.
• Battery life of more than 500 hrs. (Easily available AA cells)
• Preset alarm facility for cumulative dose and dose rate.
• IR non- contact serial communication port for PC connectively



Specifications

Radiation Detected Detector Display Energy dependence Range changeover Dose Dose rate Over range Alarm Settings   Audio Alarm   PC connectivity   Batteries   Battery status Control       EMI /EMC compliance     Dimensions Weight

Gamma / X-ray Si diode 4 digit 7 segment LCD display +/– 25% in the range of 60 Kev to 1.33 Mev Automatic 1Sv/h to 99.99 mSv/h 0.1 mSv/hr to 99.99mSv/hr 100% over range compliant a) Dose : 0-9999 Sv b) Doserate : 0.1mSv/h to 99.9 mSv/h 1 Hz alternating short beeps for dose rate and long beeps for dose alarm. Optical port for communication with PC for configuration/calibration 2 × 1.5 V AA size alkaline /any batteries to provide a life of approximately 500 Hrs. Low battery indication on LCD A single push button for a) Powering the unit ON/OFF b) Viewing dose / doserate c) Muting doserate/dose alarm Shall not be affected by RF over frequency of 20MHz to 1000MHz at an intensity of 10V/m as per ANSI N42.32 - 2003 67W x 28H x 92L 150gms. approximatly

*Optional switch ON/OFF from PC
Note:Manufactured by NUCLEONIX SYSTEMS based on, Si-diode sensor Technology from Bhabha Atomic Research Center Mumbai.

IR docking station ds713 dose records data management software (drms)

Features

Hardware :

• Communication with dosimeters over IR port
• Connects to PC through USB port



Software :

• Automatic cumulative dose & ID readout, into data base
• Facilitates configuration of alarm settings and dose calibration
• Data storage automatically after each readout q Dose records data base gives weekly, monthly, & yearly cut dose of individuals.

IR Docking Station DS713 under the control of the PC communication software, primarily facilitates automatic readout of Cumulative Dose along with the Unique ID apart from configuration/calibration of the dosimeter. The Docking station communicates with the Dosimeter through IR port at a baud-rate of 1200. On the PC side it gets connected through the USB port. This Docking station DS713 is designed for docking PD714, derives power through the USB port.
Dose records data management software (DRMS) is designed to read total dose from the dosimeter automatically once the dosimeter is placed on the docking station. It also facilitates Configuration of Alarm Settings for Cumulative Dose and Dose-rate, assigning Unique ID for individual dosimeters, Calibration of the dosimeters for Cumulative Dose. The Application software routes data to Dosimeter through virtual comm. port to Docking station which in turn routes the data through IR port to the Dosimeter. Once the data is retrieved into PC, it gets recorded in a database. Users can retrieve and analyze data - ID-wise, Day-wise, Month-wise, Week-wise.

IR docking station DS713

Pocket dosimeter worn on waist belt



FULLY-AUTOMATIC TLD BADGE READER [type : TL1010]

Technical Data

Fully Automatic TLD Badge Reader TL1010 is a personal monitoring system, designed to read the TLD card (TL dosimeters) worn by radiation workers.
This Badge Reader system is designed using state of art electronics, electro mechanical system, embedded code and software to load and read the TLD cards for TL glow curve / dose.
This Fully Automatic TLD Badge Reader is provided with an extra facility of sensing the unique ID of TLD Cards.
System facilitates storing of dose record and glow curve. TL dosimeter is heated by hot gas (N2) jet to 280oC and TL output is recorded using PMT whose integral of the current output is proportional to the dose.
It is a Thermoluminescent dosimeter based personnel monitoring system. Thermoluminescent dosimeters make use of the property of certain materials which absorb energy when exposed to X, Gamma or Beta radiation. On heating, the absorbed energy is released in the form of visible light. A plot of light intensity emitted against temperature is known as a glow curve. For a given heating rate, the temperature at which the maximum light emission occurs, is called the glow-peak temperature and it is characteristic, of the individual TL material (also called phosphor).
The quantity of the visible light emitted (TL output) is found to be proportional to the energy absorbed by the TL material. The estimation of radiation exposure may be based either on the height of the glow curve (differential method) or the area under the glow curve (integral method).
The TLD personnel monitoring system essentially consists of two major parts: TLD badge and the TLD badge reader.
The TLD Badge comprises of a plastic cassette containing three Teflon TLD discs (13.3mm and 0.8mm thick) that are mechanically clipped on to circular holes (12.0mm) punched in an aluminium card (52 x 30 x 1mm).
The TLD Badge Reader is designed to measure X, Gamma and Beta radiation dose. The metal filter combination (1mm Al + 0.9mm Cu) is provided to reduce the photon energy dependence of the TL discs. The TL badge reader is calibrated such that the TL output of the disc under the metallic filter reads directly the gamma radiation dose.

Specifications

Dosimeter Three-element BARC CaSO4 (Dy) PTFE disc dosimeter badge Light Measurement System Photo-multiplier tube (EMI 9125A -bialkali) Light measuring system (LMS) Dark current Dark current is 1 Sv (CaSO4) equivalent with software-based sampling & subtraction Heating Method Hot gas (N2) heating Heating Cycle The temperature is raised to 280°C in 8 sec and clamped at 280°C Dose Range 50µSv - 5Sv (Gamma) and 100µSv – 5Sv (Beta) Dose Threshold <50µSv Readout time 100 sec. per badge Residual Signal <10% of reading Facilities Available Automatic sensing of ID numbers, editing of calibration factor etc. Storage of dose and glow curve data of badges in floppy/hard disk. Motorised driver assembly for automatic feeding of 50 dosimeter cards loaded in a magazine. Software IBM PC compatible menu driven in WINDOWS based software for transfer of data to user defined file, storage and display of glow curves, computations of dose and generation of dose reports.

Temperature Monitoring Chromel Alumel thermocouple in hot gas stream. External temperature monitoring output at the back panel. Range Selection Automatic from 9.999µSv to 5.000Sv Calibration Coarse adjustment by varying the EHT through a potentiometer in the EHT circuit; fine through software. Safeguards Heater/Gas flow failure.: The heater and gas flow are checked for failure in every dosimeter readout cycle. In the event of failure of heater or gas flow the readout is terminated and a message indicating heater / gas flow failure is flashed on the PC monitor. Mechanical Failure : Any mechanical failure during readout cycle is sensed using a timeout watchdog programme and the cycle is terminated with an option for the user to restart the cycle. EHT or the input circuit (I-F converter) is sensed and reading cycle is terminated in case of failure. Nominal Power Supply Power supply : 230V, 50Hz : Power requirements : 500 VA (max including PC) PC Requirements IBM Pentium IV or upward compatible, with FDD and HDD drives, VGA monitor, Serial and parallel ports with Windows XP operating system. Applications Personnel Monitoring of radiation workers in Nuclear power stations, Isotope laboratories, Industrial radigraphy installations, diagnostic & therapeutic radiology centres, etc.



Additional Accessories / Items Required
i. Three element (BARC Developed) CaSO4 (Dy) PTFE disc dosimeter badges
ii. Casettee holder
iii. Annealing oven
iv. Nitrogen cylinder / Generator with regulator

Note : Manufactured by NUCLEONIX SYSTEMS based on Technology
from Bhabha Atomic Research Center, Mumbai.
