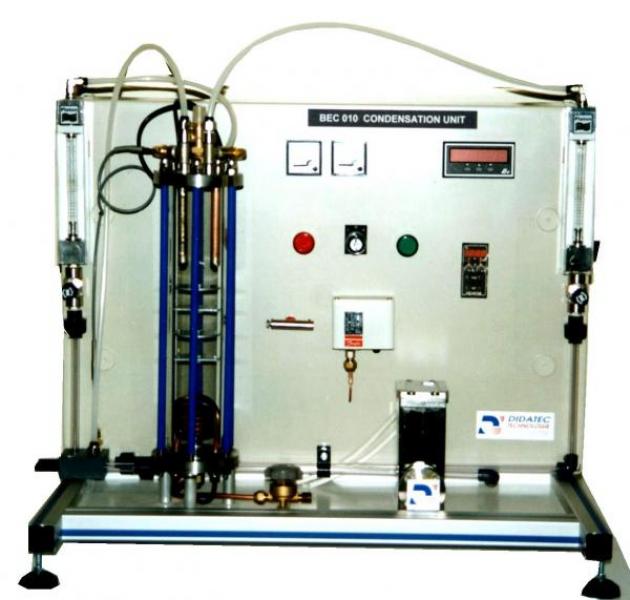

THERMODYNAMICS

BEC 010

STUDY OF CONDENSATION


http://www.didatec-technologie.com/var/plain_site/storage/images/thermodynamique/bec-010-etude-de-la-condensation/3223-1-fre-FR/BEC-010_produitfiche.jpg




Description

Water  in a closed glass chamber is heated by an electric heater and is converted into vapour.
This vapour is condensing in drops on one condenser and as a film on another condenser.
An air jet blower extracts the air from the condensers.
The instruments of this unit make it possible to measure the heat exchanged and to observe the advantages of condensation in drops over condensation as a film.
The BEC equipment is delivered complete with instrumentation and includes a technical manual as well as instructions.

Teaching suggested applications*

Visual observation of the boiling water and the condensation in drops and as a film.
Measurement of the heat flow and the surface heat transfer coefficient for the condensation in drops and film
Examination of the relationship between temperature and pressure for the saturated water vapour between 50°C and 100°C
Visual demonstration of the effect of air in a condenser
Observation of DALTON’s law.

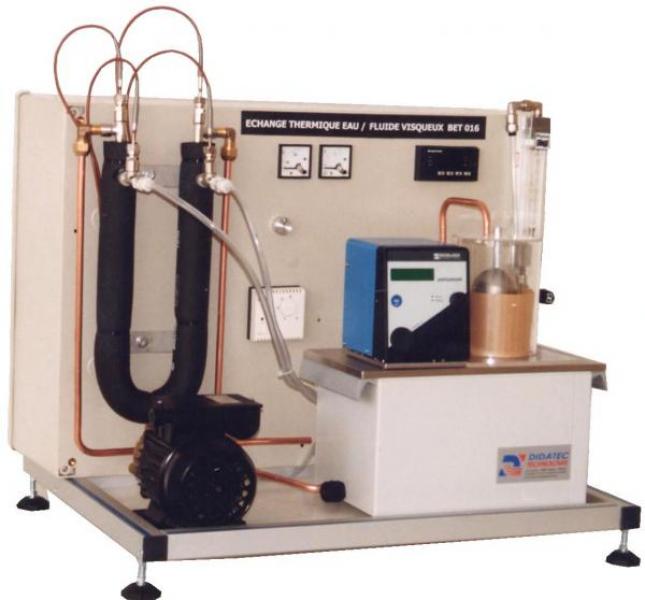

 BET 016

HEAT EXCHANGES UNIT- VISCOUS FLUID /WATER


http://www.didatec-technologie.com/var/plain_site/storage/images/thermodynamique/bet-016-echange-thermique-eau-fluide-visqueux/2995-1-fre-FR/BET-016_produitfiche.jpg


Description

Oil (viscous behavior)  heated by a thermoregulator (closed circuit) goes through an exchanger equipped with concentric and cylindrical tubes where it heats  water that is flowing in an open circuit.
The instruments provided with the unit permit measurement of  temperatures and flow rates of the fluids. This allows one to deduce the influence of laminar flow on the coefficient of exchange.
 The unit is delivered complete with instrumentation and with technical documentation and instructions.

Teaching suggested applications*

Operation of a concentric tube heat exchanger with cocurrent and counter current flow.
Determination of the coefficients of exchange for laminar flow in a viscous fluid.

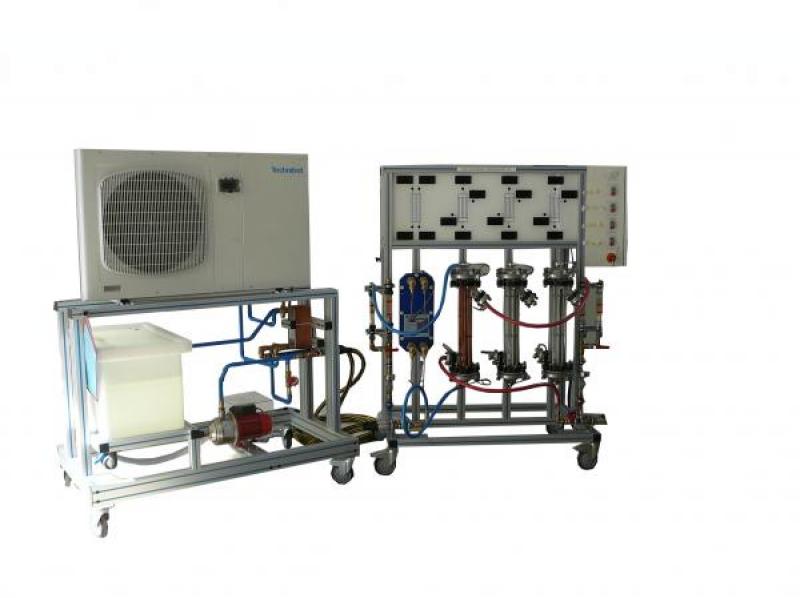

BET 100

BENCH OF STUDY HEAT EXCHANGERS


http://www.didatec-technologie.com/var/plain_site/storage/images/thermodynamique/bet-100-banc-d-etude-d-echangeur-thermique-4-echangeurs/3088-2-fre-FR/BET-100_produitfiche.jpg



Description

 The heat exchanger is complete with instrumentation
and includes a technical and instruction manual.
Designed and manufactured to industrial standards.
The unit is appropriate for different levels and fields of study.Works in closed circuit.

Teaching suggested applications*

• Heat transfers
• Laminar or turbulent flow
• Comparison between different techniques for heat exchange
• Co-flow and counter-flow
• Hot tubes, cold calender or the opposite
• Identical exchangers in series or in parallel
• Two identical exchangers in series or in parallel

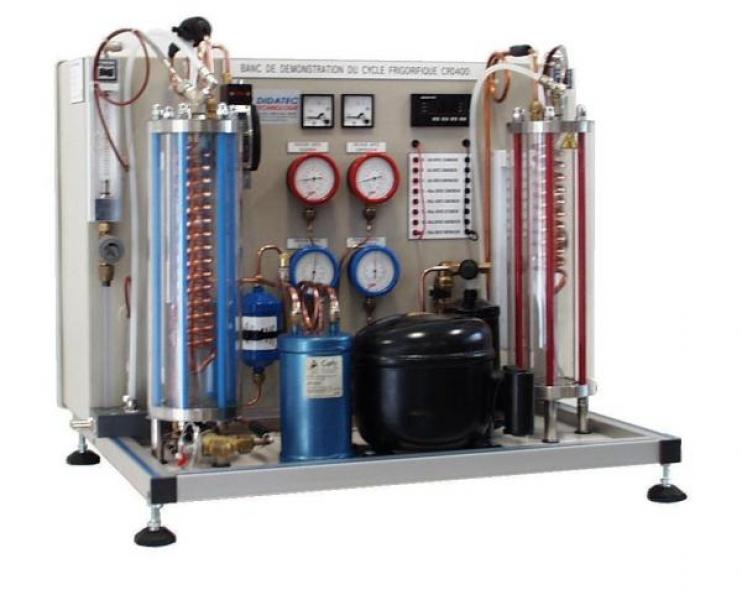

CRD 400

REFREGIRATION CYCLE DEMONSTRATION UNIT


http://www.didatec-technologie.com/var/plain_site/storage/images/thermodynamique/crd-400-banc-de-demonstration-du-cycle-frigorifique/3267-1-fre-FR/CRD-400_produitfiche.jpg







Description

The refrigeration cycle demonstration unit is delivered complete with instrumentation as well as technical and instruction manuals.
Designed and manufactured to meet industrial standards.
This unit can be used at different levels and in different fields of study.
Uses  the refrigerant R 134a as required by new regulations.

Teaching suggested applications*

 Study of the basic concepts in a refrigeration unit which utilizes  R 134a refrigerant

• Study of the important phases found in one refrigeration cycle ( compression – condensation – evaporation)

• Analysis of the theoretical refrigeration cycle

• Analysis of the real refrigeration cycle
- Determination of loss of charge
- Determination of overheating
- Determination of under cooling
- Determination of the refrigeration power through the evaporator
- Determination of the power through the condenser

• Calculation of thermal results through a condenser and through an evaporator

• Construction of the refrigeration cycle in a state diagram

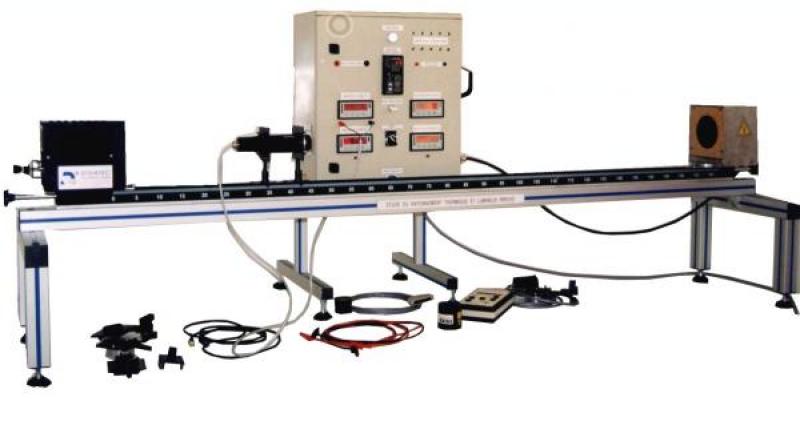

PBR 100

STUDY OF LIGHT AND THERMAL RADIATION


http://www.didatec-technologie.com/var/plain_site/storage/images/thermodynamique/pbr-100-etude-du-rayonnement-thermique-et-lumineux/21986-5-eng-GB/PBR-100_produitfiche.jpg

Description

This unit is delivered complete with instrumentation and includes a technical and instruction manual.
Applicable to different levels and fields of study.
Designed and manufactured to industrial standards.

Teaching suggested applications*

Study of light and thermal radiation.
Demonstration of KIRCHOFF’s law, LAMBERT's law and inverse square law.
Thermal and luminous energy as a function of distance.
Emission, absorption, reflection.
Investigation of the power delivered by a solar panel.

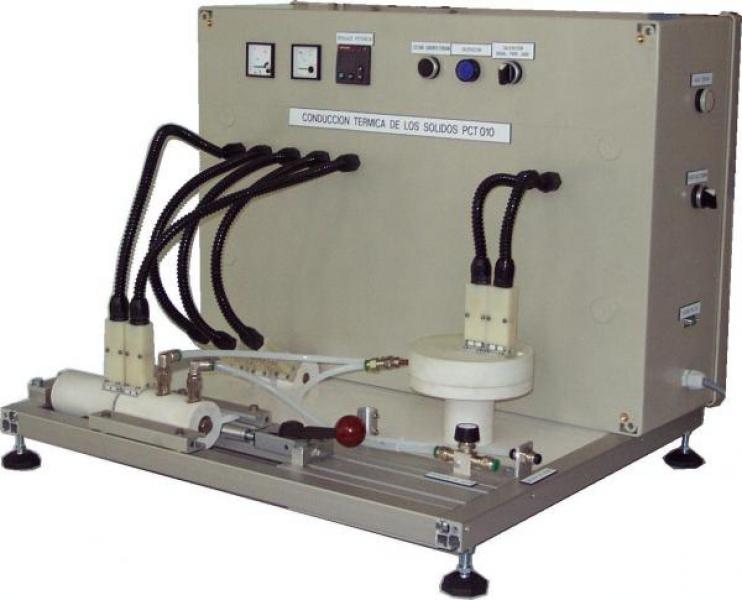

PCT 010

STUDY OF THERMAL CONDUCTION


http://www.didatec-technologie.com/var/plain_site/storage/images/thermodynamique/pct-010-etude-de-la-conduction-thermique/2924-1-fre-FR/PCT-010_produitfiche.jpg

Description

This unit is delivered complete with instrumentation and includes a technical and instruction manual.
This unit is designed for the study of radial and linear conduction.
The equipment by be used at different levels and in various fields of study.

Teaching suggested applications*

Study of thermal exchanges by conduction.
Study of linear and radial conduction laws.
Determination of the thermal conductivity of different materials.
Study of contact surface resistance and variation.
Determine temperature gradients according to different transfer rates.
Study of the influence of a conductive paste added between the samples and the hot water source.

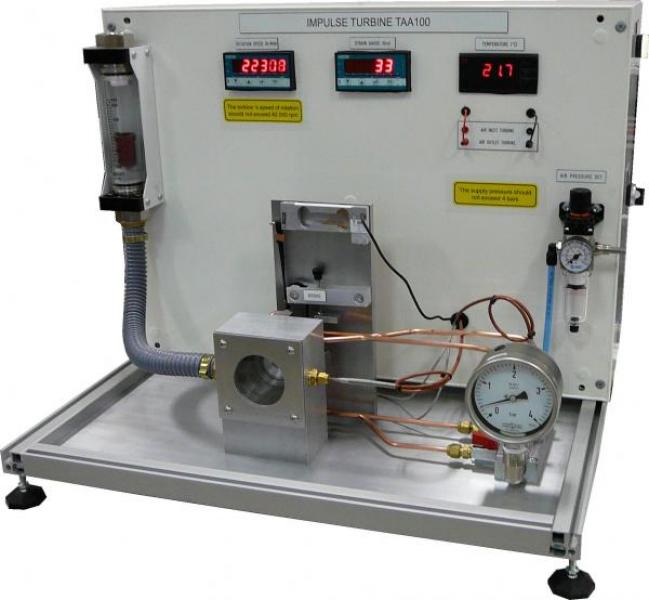

TAA 100

IMPULSE TURBINE UNIT


http://www.didatec-technologie.com/var/plain_site/storage/images/thermodynamique/taa-100-turbine-a-action/2058-1-fre-FR/TAA-100_produitfiche.jpg

Description

The bench is composed of an axial turbine (power=35W)
The distributor is equipped with 4 stop valves
The power generated is dissipated by a variable belt brake
The bench is supplied with differents sensor like tachometer, temperature sensors…
The impulse turbine unit is delivered complete with instrumentation, and includes a technical and instruction manual.

Teaching suggested applications*

• Description of the differents elements of an impulse turbine
• Calculation of the torque,the mechanical power at differents speeds of rotation
• Study of the influence of air flow on the generated power
• Study of the cycle on a T-S diagram (temperature –entropy)
• Isentropic output of the turbine

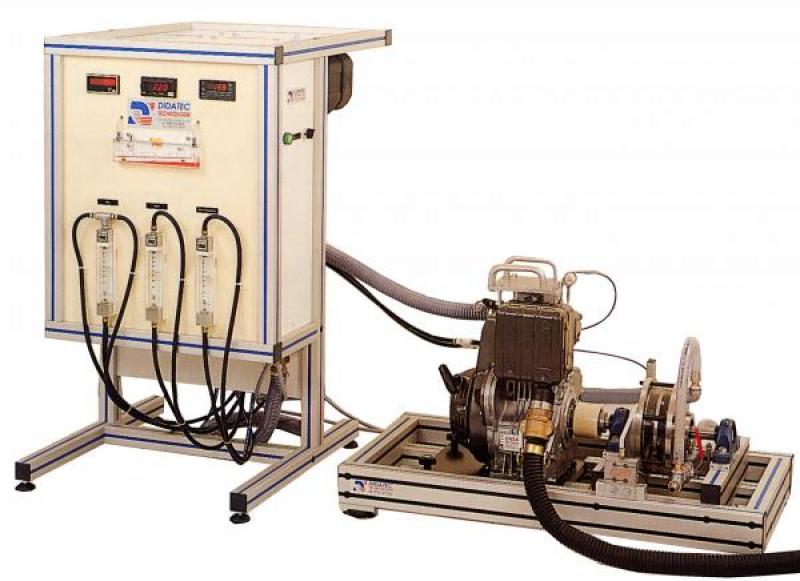

TMT 100

INTERNAL COMBUSTION ENGINES TEST UNIT


http://www.didatec-technologie.com/var/plain_site/storage/images/thermodynamique/tmt-100-moteurs-a-combustion-interne/2162-1-fre-FR/TMT-100_produitfiche.jpg



Description

The thermal engine bench comes complete with instrumentation and a  technical and instruction manual.
Designed and manufactured to industrial standards.
The light weight base and quick connect couplings make it easy to use.
OPTION :
Computer control and monitoring.

Teaching suggested applications*


 Running heat engine
 Four stroke diesel
 Four stroke gasoline
 Two stroke gasoline
 The following characteristic curves may be plotted as a function of running speed
 torque
 power applied to the brake
 specific fuel consumption
 volumetric efficiency
 brake thermal efficiency
 exhaust temperature

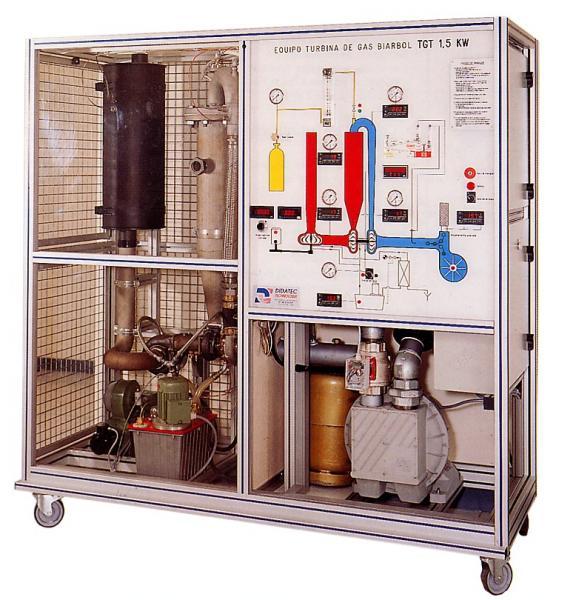

TGT 1.5

TWO SHAFT GAS TURBINE UNIT


http://www.didatec-technologie.com/var/plain_site/storage/images/thermodynamique/tgt-1.5-unite-turbine-a-gaz-deux-arbres/2080-1-fre-FR/TGT-1.5_produitfiche.jpg



Description

The gas turbine unit comes complete with instrumentation and  a technical and instruction manual.
Designed and manufactured to industrial standards.
Works in an open circuit.
Easy to start, run and maintain.
This unit is designed for various levels and fields of study.

Teaching suggested applications*

 Study of the functioning of a two, independent shaft, gas turbine, operating on propane.
 Measurement of flow rate, pressure, angular speed and torque
 Measurement of electric power.
 Angular speed regulation
 Efficiencies
 Safety precautions

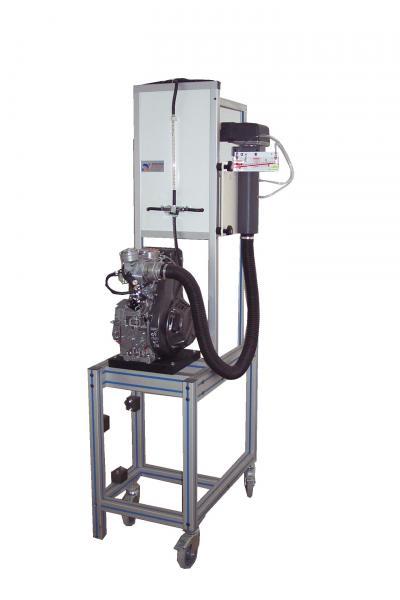

TMT 701

FOUR STROKE DIESEL ENGINE


http://www.didatec-technologie.com/var/plain_site/storage/images/thermodynamique/tmt-701-moteur-diesel-4-temps/2309-1-fre-FR/TMT-701_produitfiche.jpg



Description

 This unit is designed for connection to the rotating machine test bench – power module TMT 700.
 Designed and manufactured to industrial standards.
 A quick coupling and axle alignment system make it easy to connect this unit to he TMT 700.

Teaching suggested applications*

 Running of a four stroke diesel engine
Constructing graphs of the following as a function of engine speed :
- Torque
- Power
- Specific fuel consumption
- Mechanical efficiency
- Volumetric efficiency

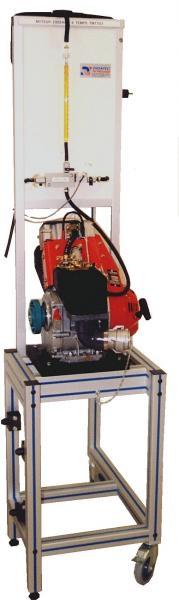

TMT 703

FOUR STROKE PETROL ENGINE


http://www.didatec-technologie.com/var/plain_site/storage/images/thermodynamique/tmt-703-moteur-essence-4-temps/2483-1-fre-FR/TMT-703_produitfiche.jpg



Description

This unit is designed for connection to the rotary machine test bench – power module TMT 700.
Designed and manufactured to industrial standards.
 The alignment of axles and the quick connect coupling make connection to the TMT 700 easy.

Teaching suggested applications*

This unit enables one to observe the operation of an electronic ignition four stroke heat engine
The following variables can be determined as a function of speed :
engine torque
power
specific fuel consumption
mechanical efficiency
volumetric efficiency

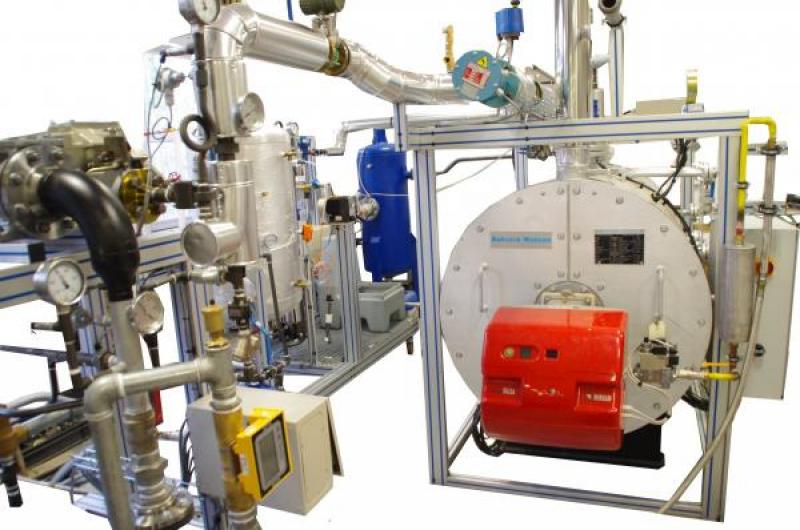

TVT 1KW

STEAM TURBINE UNIT 1KW


http://www.didatec-technologie.com/var/plain_site/storage/images/thermodynamique/tvt-1kw-turbine-a-vapeur-1kw/2102-2-fre-FR/TVT-1KW_produitfiche.jpg



Description

The steam turbine unit include steam boiler, utility group, and alternator turbine unity of electricity production.
The unit is delivered complete with technical and educational manual.
 It is designed and manufactured to industrial standards.
Complete safe material, control and measurement.
This unit can be used at different levels and for different courses

Teaching suggested applications*

Functioning of an electricity production unit
 Steam boiler
 Steam turbine
 Alternator
 Efficiency
Measuring devices on different circuits
Temperature
Level
Pressure
Flow
Efficiency  calculation
 Steam boiler
 Superheater
 Steam turbine
 Steam condenser
 Cooling tower
Study and analyse on water treatment system

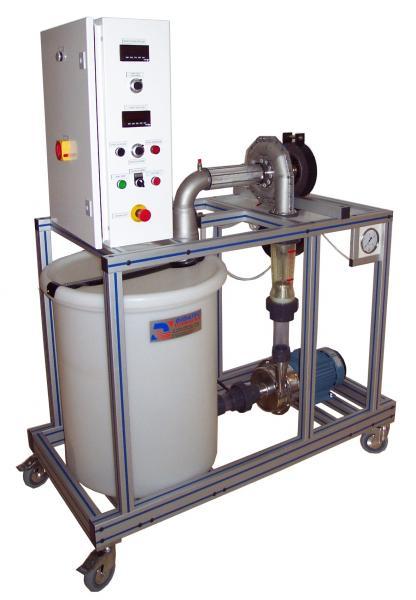

TVF 010

FRANCIS TURBINE


http://www.didatec-technologie.com/var/plain_site/storage/images/thermodynamique/tvf-010-turbine-francis/2036-1-fre-FR/TVF-010_produitfiche.jpg



Description

The Francis turbine unit is delivered complete with instrumentation and includes a technical and instruction manual.
Designed and manufactured to industrial standards.
This unit has been designed for different levels and fields of study.

Teaching suggested applications*

Collect data to construct various graphs related to turbomachines :
Torque, power (hydraulic and mechanical), efficiency, and flow according to the rotation velocity for different pressures and vanes
Iso-efficiency on flow graph according to the rotation velocity
Observe the movement of fluid through the turbine.
